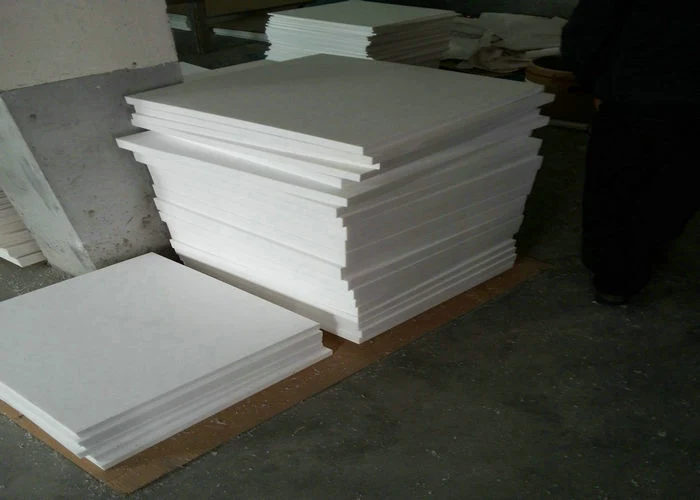

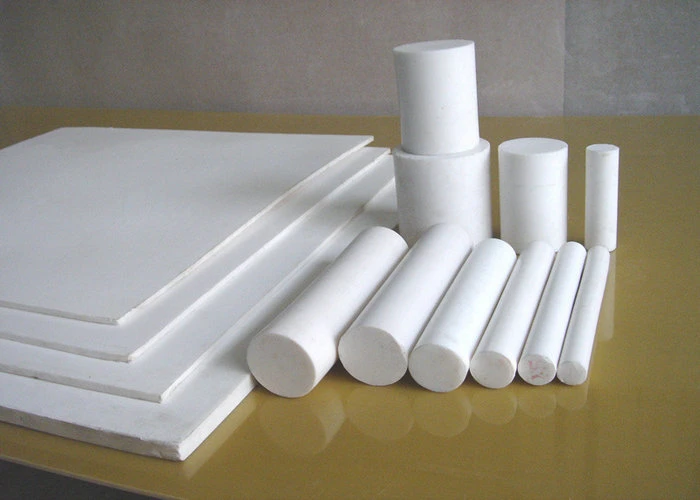

PTFE Sheet, PTFE Roll, PTFE Sheeting Made with 100 % Virgin ptfe White and Black Color

Description: the PTFE sheet are made by moulded or skived with high quality polytetrafluoroethylene(PTFE) material. It is the best polymer material of chemical resistance in all knows plastic material. With excellent characteristics of corrosion resistance, weathering resistance, dielectric properties and lowest coefficient of fraction in all know solid materials in a wide range of practicable temperature from -180°C - +260°C and a wax-like surface to which anything hardly sticks. PTFE sheet can be widely used as corrosion-resistant linings, seals, gasket, guide, electric insulate parts and bearing pads for bridgeIt does not age.



Specifications:

material: virgin PTFE

quality: premium grade

color: white, black

surface: smooth/smooth

tensile strength: 20-30Mpa

hardness: 55+/-5shore D

elongation at break: 200%-320%

density: 2.1-2.3g/cm3

break down voltage: 10KV/mm

temperature resist: -180°C - +260°C

size of PTFE moulded sheet:

1.0-60mm x 150mm x 150mm

1.0-60mm x 250mm x 250mm

1.0-60mm x 300mm x 300mm

1.0-60mm x 450mm x 450mm

1.0-60mm x 600mm x 600mm

2.0-60mm x 800mm x 800mm

2.0-60mm x 1000mm x 1000mm

2.0-60mm x 1200mm x 1200mm

2.0-60mm x 1500mm x 1500mm

2.0-60mm x 1000mm x 2000mm



size for PTFE skived sheet:

0.3-6.0mm x 300mm x 10, 15, 20m

0.3-6.0mm x 600mm x 10, 15, 20m

0.3-6.0mm x 1000mm x 10, 15, 20m

0.3-6.0mm x 1200mm x 10, 15, 20m

0.3-6.0mm x 1500mm x 10, 15, 20m

0.3-6.0mm x 2000mm x 10, 15, 20m

packing in rolls and pallets

OEM & customized size are agreed

***when you enquiry, pls confirm the material, size and quantity***
